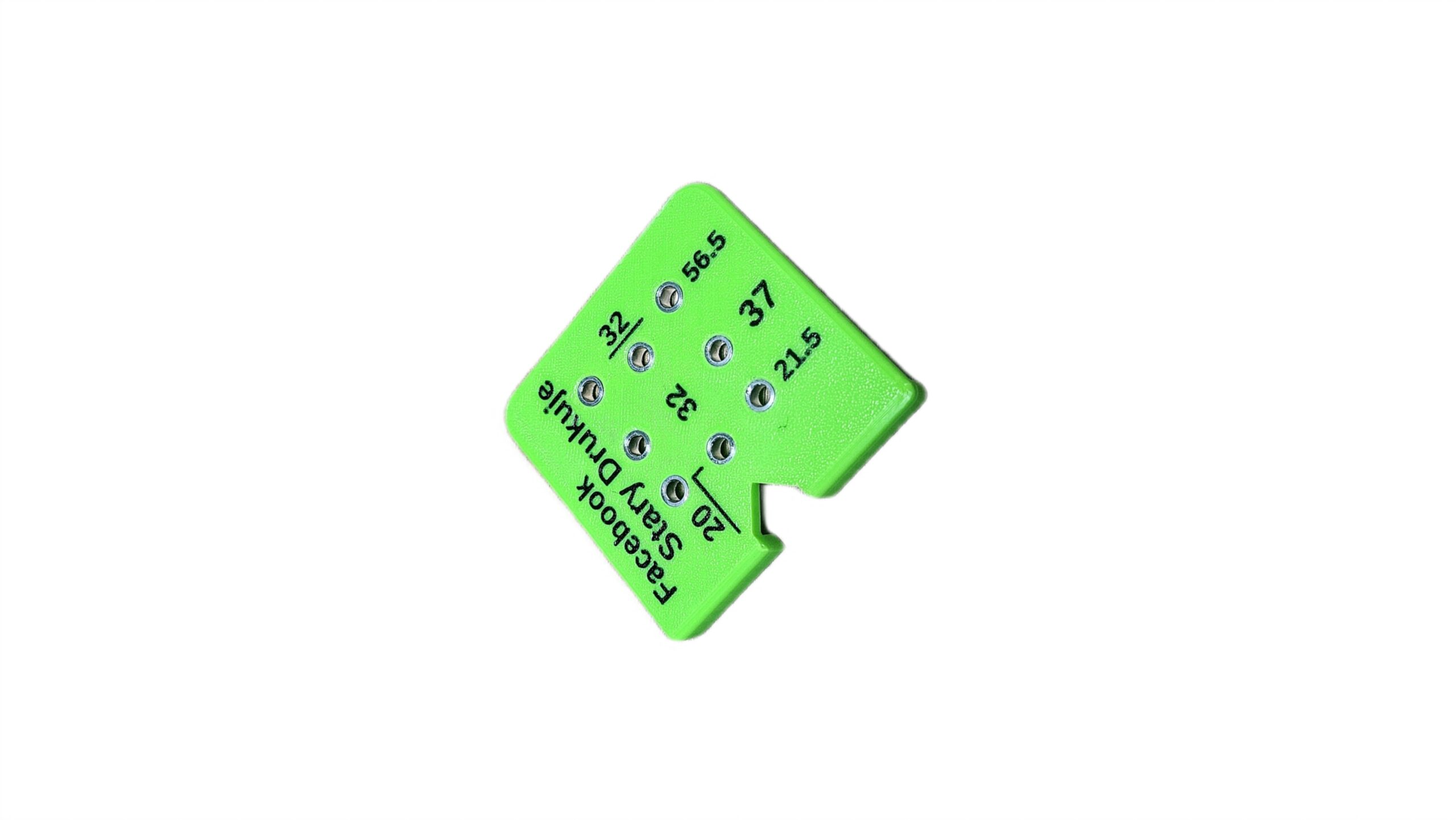

4-in-1 Hinge and Guide Jig 3mm

Gauge for drilling holes for straight, cross, parallel, and recessed runners.

Product features:

✅ Universal application – enables precise drilling of holes for straight and cross guides, ensuring perfect fit.

✅ Reinforced guide sleeves – holes with 3 mm internal diameter, ideal for guiding drill bits or center punches. Perfect for Euro screws!

✅ Precise and repeatable drilling – facilitates quick and accurate hole-making in the right places without the risk of error.

✅ Solid and durable construction – made of high-quality materials, resistant to wear and intensive use.

✅ Ease of use – simply apply the template, mark or immediately drill the holes to ensure perfect installation.

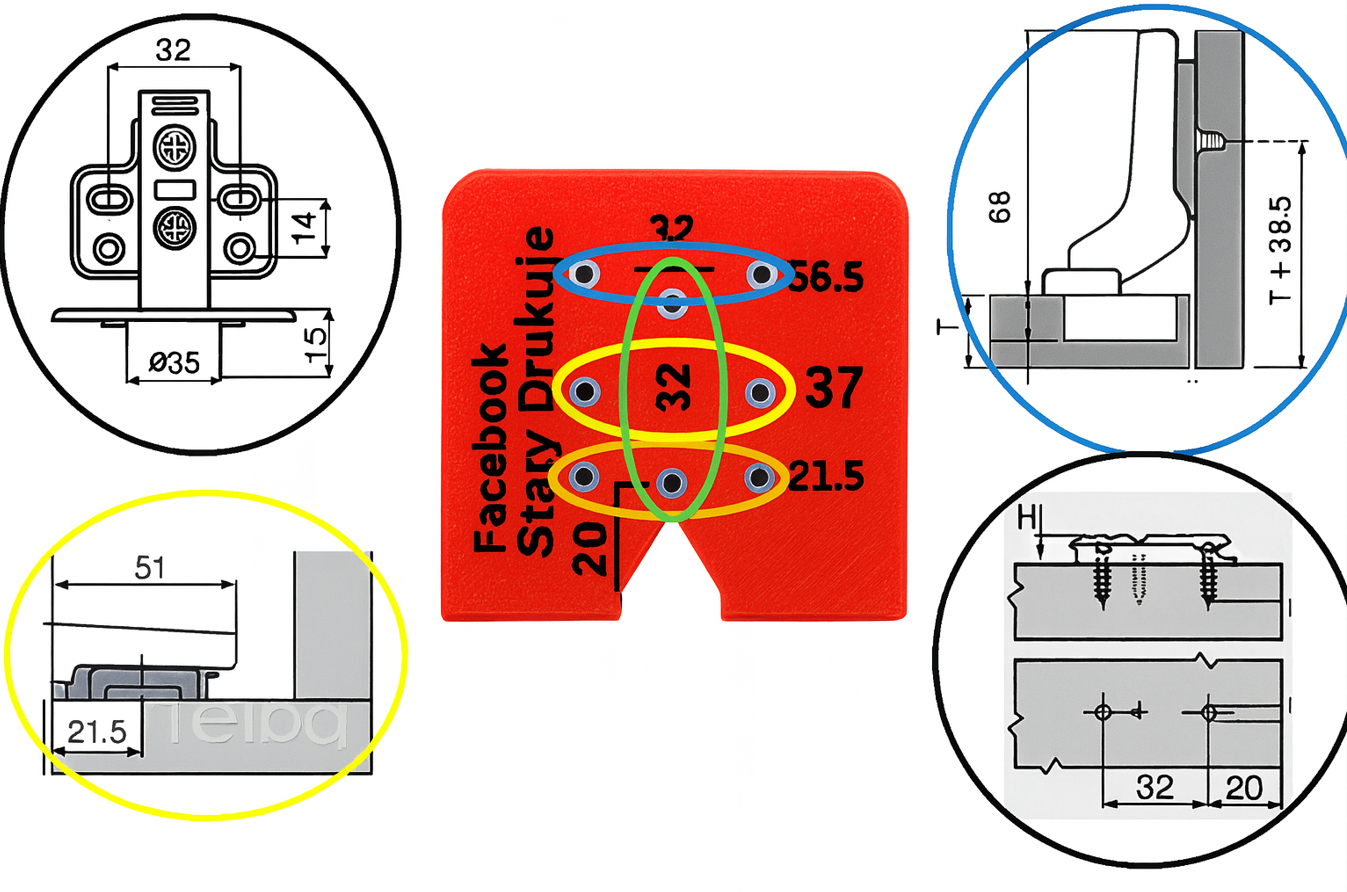

Cross guide:

✅32mm spacing

✅37mm hole from the edge of the board

Straight guide:

✅first hole 20mm from the edge of the board

✅32mm between holes

Parallel runner:

✅first hole 21.5 mm from the edge of the board

✅32mm between holes

Recessed hinge:

✅32mm spacing

✅hole 56.5 mm from the edge of the board
