Woodworking Hole Layout Jig Ø3mm | Drilling Template | 25 mm Spacing

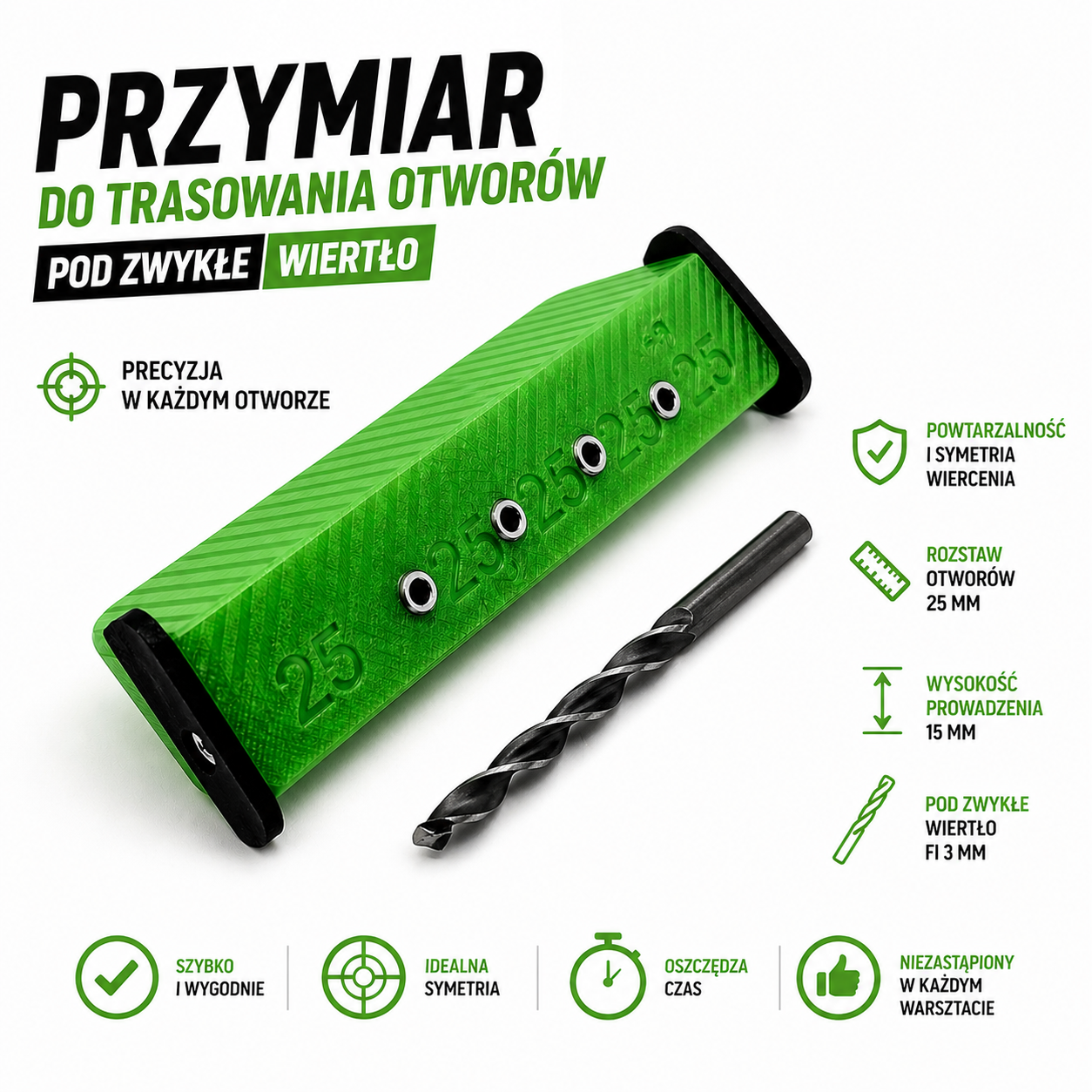

HOLE LAYOUT JIG Ø3mm

Tired of measuring holes and checking symmetry when assembling furniture components?
This jig allows you to drill
quickly • evenly • repeatedly
when laying out mounting holes.

Thanks to its guide bushings, it ensures stable drill guidance and high repeatability when creating holes for screws, dowels, and furniture joints.

---

🧰 Key Features

✅ reinforced with Ø3mm guide bushings

✅ drill guide height 15 mm

✅ positioning stops facilitate quick gauge setup

✅ hole spacing 25 mm

✅ enables hole layout for screws, dowels, and furniture joints

✅ Ensures drilling repeatability and symmetry

✅ compact and convenient to use

---

📐 Technical Specifications

• drill guide diameter: Ø3mm
• guide height: 15 mm
• hole spacing: 25 mm
• application: marking and drilling mounting holes

---

🎯 How to Use?

Position the gauge → drill → slide → done.

✔ quick hole layout
✔ perfect drilling symmetry
✔ drilling repeatability

Ideal for working with wood, MDF, plywood, and furniture board – both in the woodworking shop and during furniture assembly.

---
