Carpentry Gauge 5X32 mm for Furniture Supports – Drilling Jig

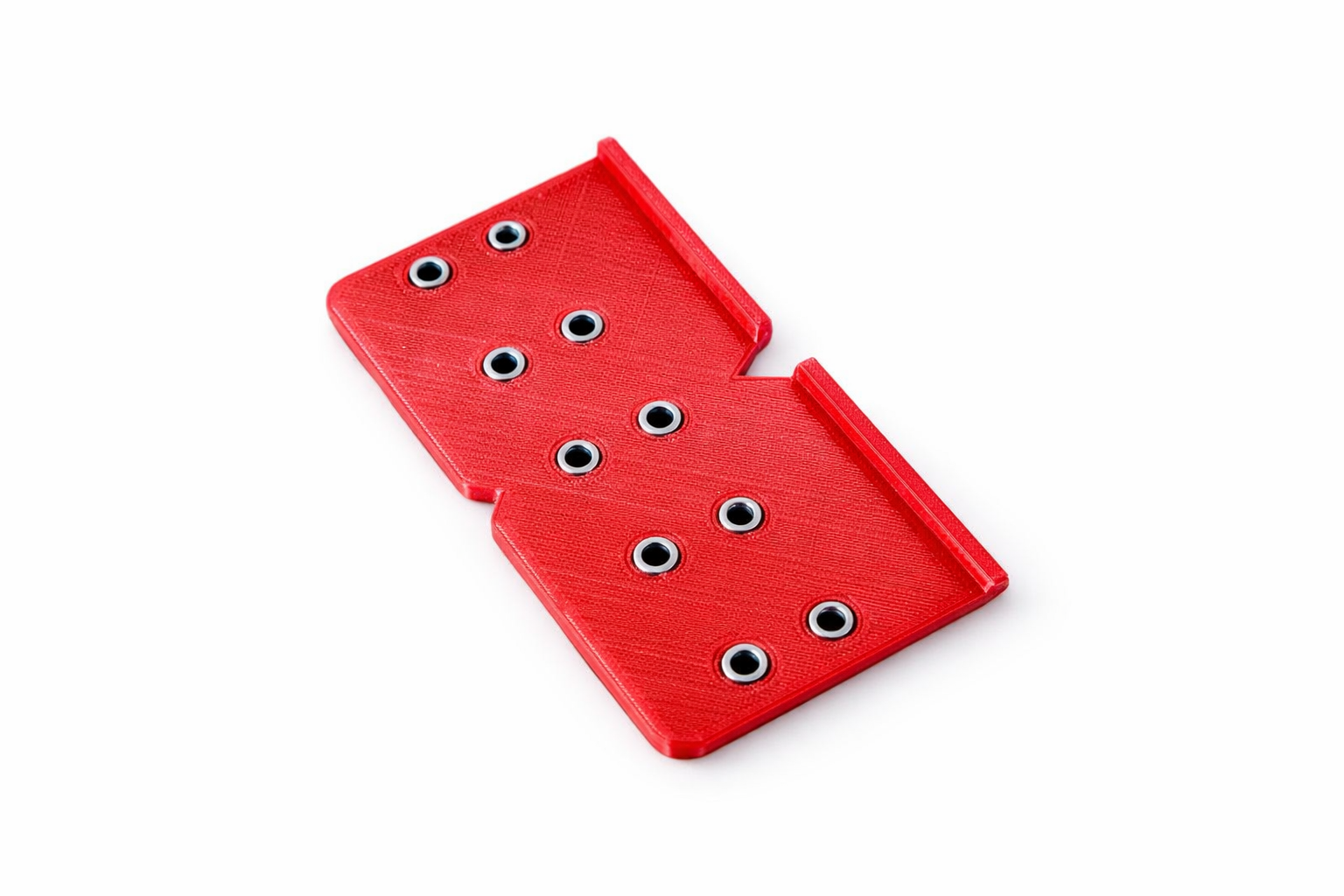

DRILLING JIG FOR 5X32 mm SHELF SUPPORTS

Tired of measuring every 32 mm and correcting holes?

This jig allows you to drill
quickly • evenly • repeatably
in the 32 mm system.

🧰 Key Features

✅ 5 holes, 32 mm standard
✅ steel guide bushings Ø 5 mm
✅ drill guidance – stable guidance
✅ works on left / right side
✅ edge stop for board
✅ compact and convenient to use

📐 Technical Specifications

• standard: 5 × 32 mm
• drill guide diameter: 5 mm
• bushings: steel
• application: drilling for shelf supports

🎯 How to Use?

Position at the edge → drill → move → done.

✔ even holes
✔ perfect 32 mm spacing
✔ 100% drilling repeatability

Works on cabinet sides before assembly or on assembled furniture.

⭐ Other versions of the jig are also available:

• 3 × 32 mm – compact version for shorter sections
• 7 × 32 mm – for even faster work with longer rows of holes
